Electrically intelligent tree
Every drop is checked against the real topology: domains, protection, phases and neutral are carried downstream automatically.
Hover to previewPANEL DESIGNER
Live in browser
Cabinets that know their own wiring.

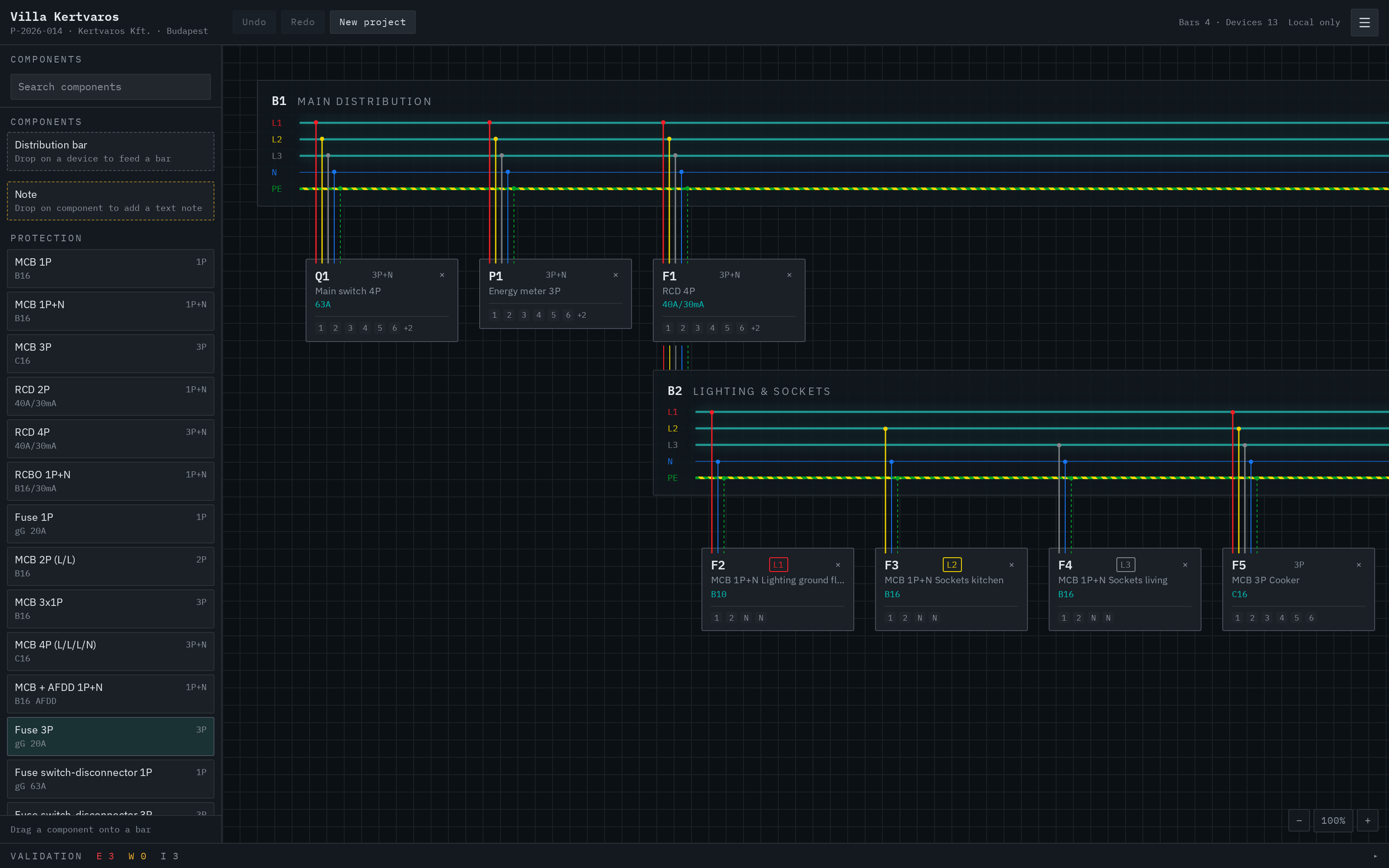

A browser-based editor built on a real electrical topology instead of loose shapes. Drop a device and it inherits phases, protection and potentials — or gets rejected with a reason.
IEC 60617 / ANSI symbolsEN · DE · HUBOM & PDF exportLoxone Link · Tree · Modbus
PANEL DESIGNER — EDITOR
Features
Built for panel builders
A topology-aware editor that treats every component as an electrical object, not just a shape on a canvas.
Live validation

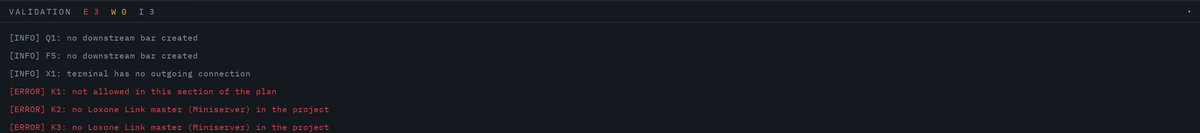

Missing RCD, unprotected socket, terminal without a feeder — errors and warnings appear as you draw and jump you to the device.
Hover to preview
Phases done right

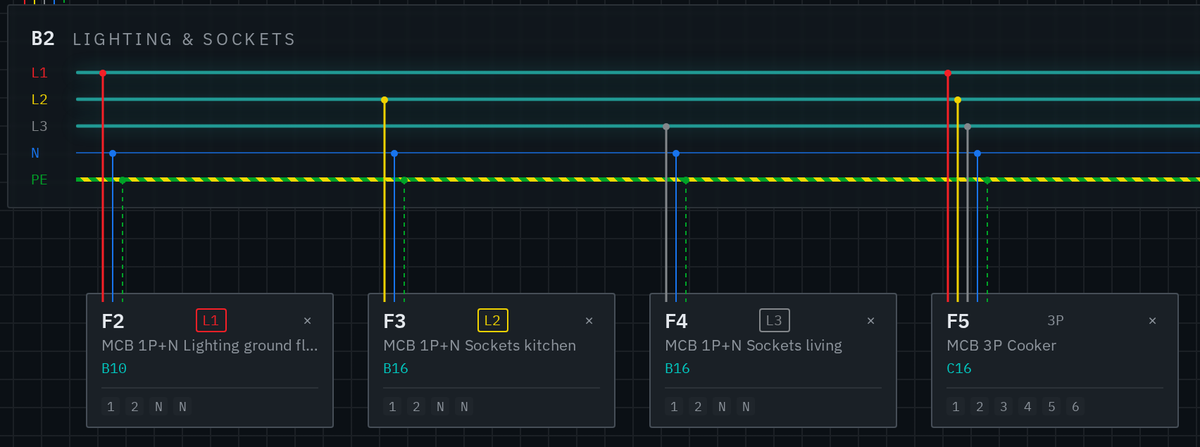

1P to 3P+N with automatic balancing, phase inheritance on sub-bars and correct L1/L2/L3/N/PE wire colours.
Hover to preview
Smart terminals

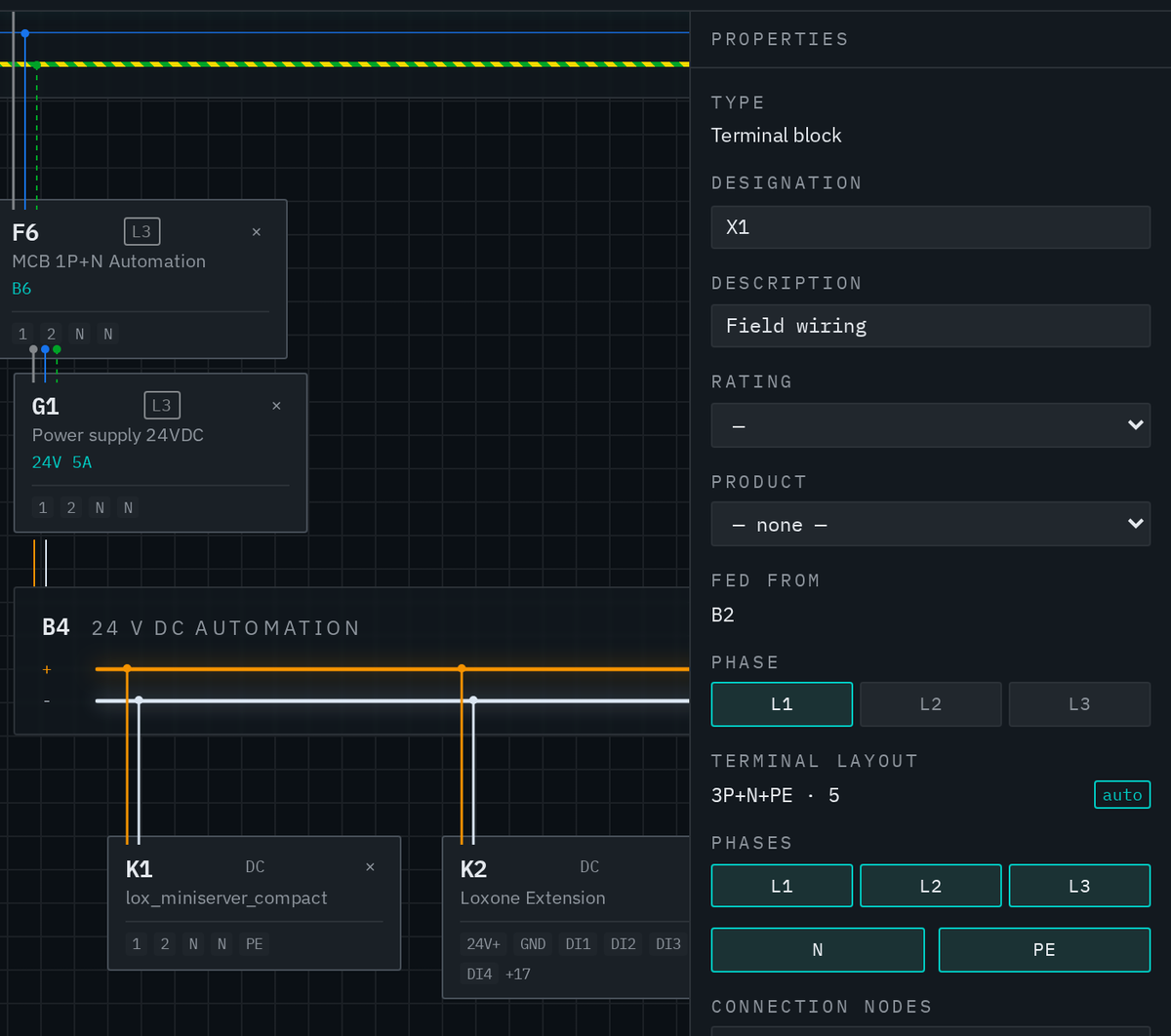

Terminal blocks adapt to their feeder — poles, N, PE or 24 V DC +/− — and number themselves as -X1:1, -X1:2 per strip.
Hover to preview
Your own components

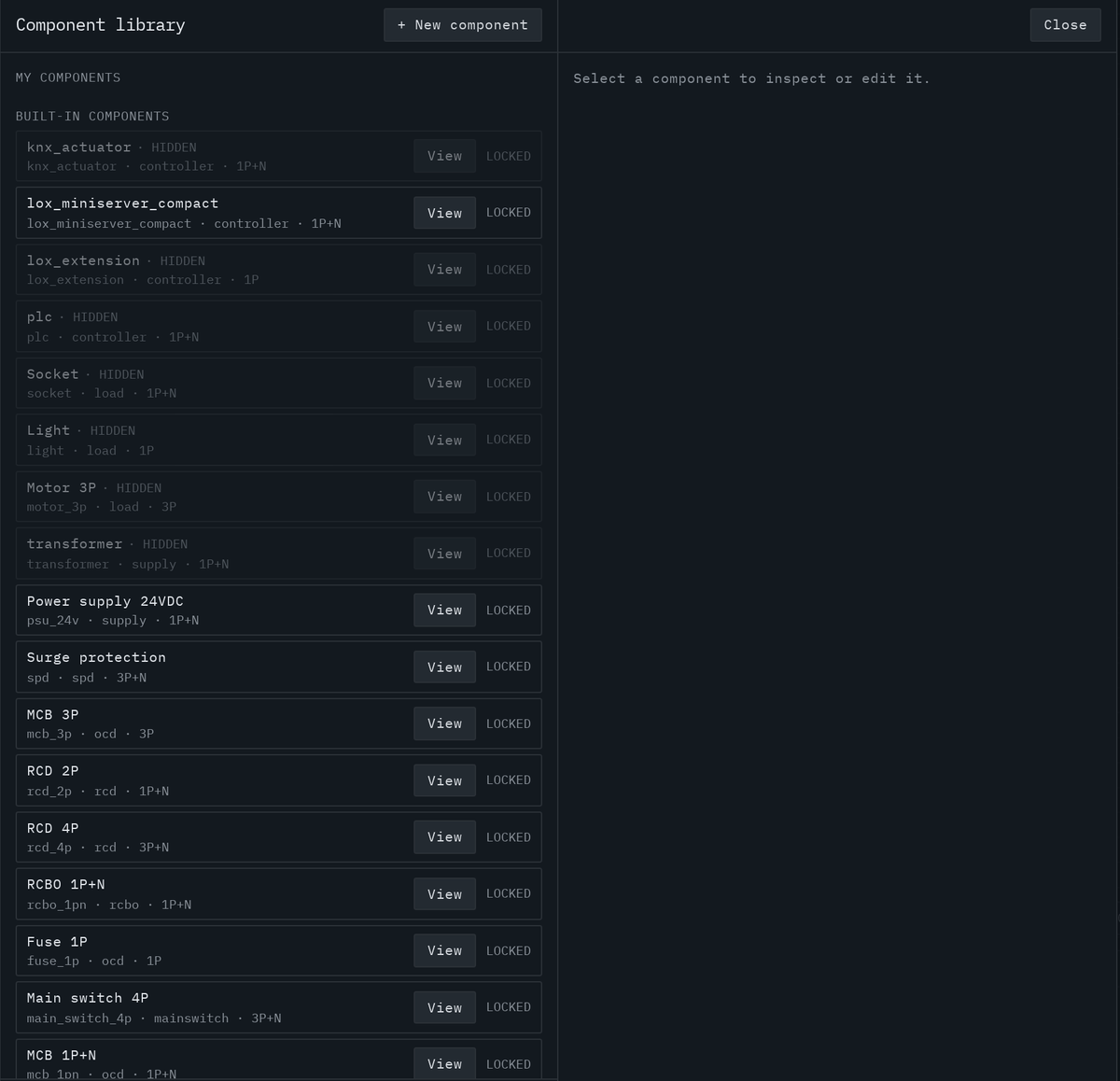

A component library with node-level editing, ratings from real devices and admin-managed shared parts.
Hover to preview
Automation ready

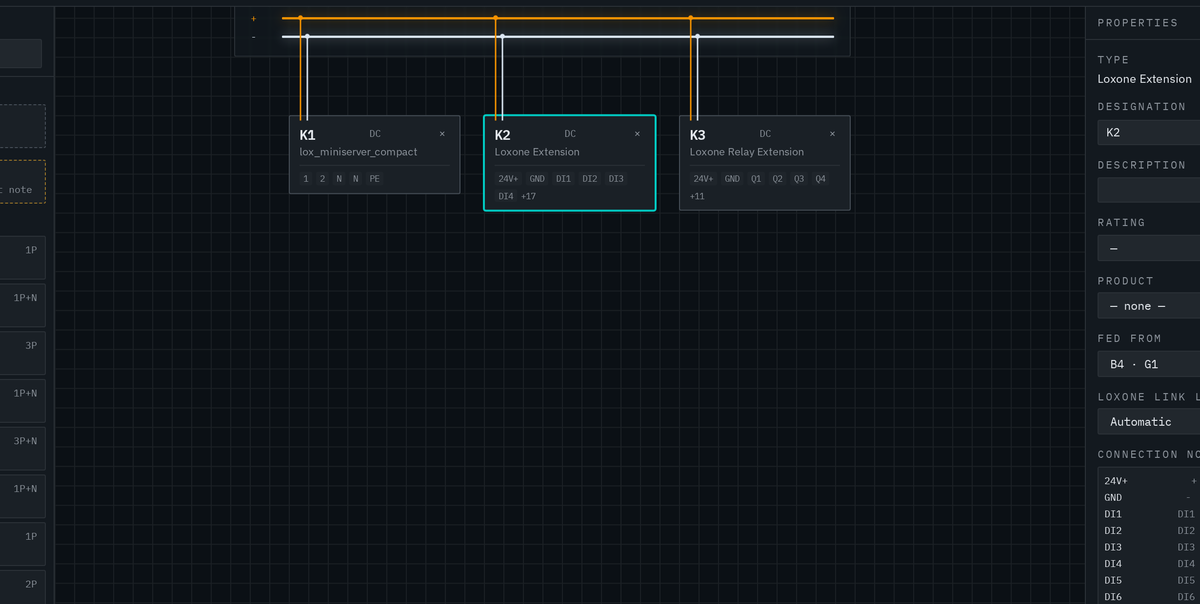

Loxone Link, Tree, Modbus and relay channels drawn as reference arrows you can click to jump between both ends.
Hover to preview
Workflow
From main bar to documentation
- 01
Start from the main bar
Set supply, phases and project data, then drop the incoming protection.
- 02
Build downstream
Drag MCBs, RCDs, PSUs, meters and loads onto bars or straight onto a device.
- 03
Let it check itself
Validation runs continuously; terminals and designations renumber on their own.
- 04
Export
BOM as CSV or Excel with vendor prices, plus an IEC 60617 or ANSI schematic PDF.
Exports
Exports that leave the screen
Assign real products and vendors to your virtual components, then generate a purchasable parts list — grouped by identical items, with order codes, prices and a project total. The schematic export is drawn from the model as vectors, in single-line or full multi-line style, on framed A3 sheets with a title block.
- ✓BOM as CSV (UTF-8) and formatted Excel with SUM totals
- ✓Schematic PDF in IEC 60617 or ANSI/IEEE symbols
- ✓Multi-line diagrams with L1/L2/L3, N and PE drawn separately
- ✓Terminal list and BOM sheets appended to the drawing
Get early access
Panel Designer is in private beta. Leave your email and we'll open your account as soon as there's a seat free.
